Grating Details
Monaco Distributors is the sole national supplier of Ercon FRP (fibreglass reinforced polyester) Cable Ladder, Cable Tray and Cable Support Systems.
No.1
| I-4010 | ||||
|---|---|---|---|---|
| #BARS/FT | LOAD BAR | OPEN AREA | Approx Wt | |
| 12 | 25mm | 40% | 17.1kgs/m2 | Actual Photo |
 |
 |
|||
No.2
| I-5010 | ||||
|---|---|---|---|---|
| #BARS/FT | LOAD BAR | OPEN AREA | Approx Wt | |
| 10 | 25mm | 50% | 14.2kgs/m2 | Actual Photo |
 |
 |
|||
No.3
| I-6010 | ||||
|---|---|---|---|---|
| #BARS/FT | LOAD BAR | OPEN AREA | Approx Wt | |
| 8 | 25mm | 60% | 11.2kgs/m2 | Actual Photo |
 |
 |
|||
No.4
| I-6010 | ||||
|---|---|---|---|---|
| #BARS/FT | LOAD BAR | OPEN AREA | Approx Wt | |
| 8 | 25mm | 60% | 11.2kgs/m2 | Actual Photo |
|
 |
|||
No.5
| I-5015 | ||||
|---|---|---|---|---|
| #BARS/FT | LOAD BAR | OPEN AREA | Approx Wt | |
| 10 | 38mm | 50% | 19.1kgs/m2 | Actual Photo |
 |
 |
|||
No.6
| I-6015 | ||||
|---|---|---|---|---|
| #BARS/FT | LOAD BAR | OPEN AREA | Approx Wt | |
| 12 | 38mm | 60% | 16.1kgs/m2 | Actual Photo |
 |
 |
|||
No.7
| T-3310 | ||||
|---|---|---|---|---|
| #BARS/FT | LOAD BAR | OPEN AREA | Approx Wt | |
| 6 | 25mm | 33% | 12.2kgs/m2 | Actual Photo |
 |
 |
|||
No.8
| T-3810 | ||||
|---|---|---|---|---|
| #BARS/FT | LOAD BAR | OPEN AREA | Approx Wt | |
| 5 | 25mm | 38% | 11.2kgs/m2 | Actual Photo |
 |
 |
|||
No.9

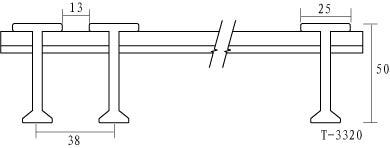

| T-3320 | ||||
|---|---|---|---|---|
| #BARS/FT | LOAD BAR | OPEN AREA | Approx Wt | |
| 8 | 50mm | 33% | 19.5kgs/m2 | Actual Photo |
 |
 |
|||
No.10
| T-5020 | ||||
|---|---|---|---|---|
| #BARS/FT | LOAD BAR | OPEN AREA | Approx Wt | |
| 6 | 50mm | 50% | 15.1kgs/m2 | Actual Photo |
 |
 |
|||
